Home Product Graphite Crucible

Graphite Crucible

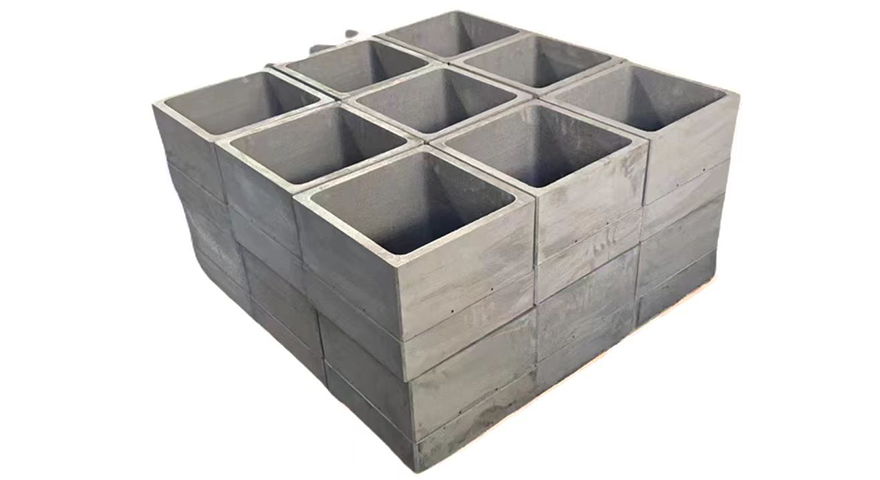

Graphite crucible is made of artificial graphite electrode material with good thermal conductivity and high temperature resistance. It is used in high temperature processes, has a good thermal expansion coefficient, good resistance to rapid heating and cooling, strong corrosion resistance to acid and alkaline solutions, and can withstand high temperatures of 2000℃. It is used as a high-temperature container for melting and holding non-ferrous metals and producing negative electrode materials.

info@yecarbon.com

Physical and chemical indicators	Unit	Parameter value
Density	g/cm³	≥1.5
Tensile strength	MPa	≥80
Compressive strength	MPa	≥160
Bending strength	MPa	≥150
1600℃） Thermal conductivity (1600°C)	W/(m-K)	10-12
Thermal expansion coefficient (level)	x10'/K	1-2
Thermal expansion coefficient (vertical)	x10'/K	6-8.5
Ash content	ppm	＜150
（R.T-1250℃） Resistivity(R.T-1250°C)	uΩ·m	25-50
Heat treatment temperature	℃	≥2000
